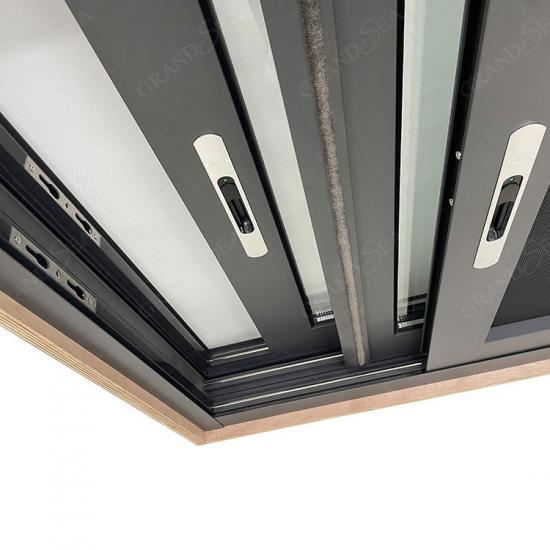

Heavy Duty Triple Track Aluminum Sliding Window with Stainless Steel Insect Screen
Our triple track aluminum sliding window with stainless steel security insect screen, this horizontal sliding window delivers smooth sliding operation, excellent thermal insulation and weather resistance. Custom frame depth, dimensions and finishes are available to match your building projects. For further details, please contact us via email.
| Product Name | Triple Track Aluminium Sliding Window |
| Size | W：32-160in H：24-96in |
| Wall thickness | 128/156mm |
| weight | 20KG-380KG |
| Track System | Triple track sliding, 2 pieces / 2+1 sash configuration |
| Material | 6063-T5 Aluminum Alloy |
| Mesh | Stainless steel mesh / Fiber mesh / Aluminum mesh |
| Opening Type | Horizontal sliding |
| Glass Options | Double Glazing / Tempered Glass / Low-e Glass |
| Sealing | EPDM rubber sealing gaskets |
| Hardware | Heavy duty sliding roller and lock system |
FQA
Q1: What frame depths can I select?
A: Two options: 128mm and 156mm frame profiles. 156mm offers better thermal insulation for cold regions.
Q2: What is the maximum weight this sliding system can support?
A: Our heavy-duty sliding hardware supports sash weight ranging from 20KG up to 380KG for large glass panels.
Q3: Can you supply shop drawings for building permit?
A: Yes. We can provide technical shop drawings once you confirm your window sizes and configuration.
Q4: What mesh options are available?
A: 304 stainless steel insect mesh as standard; 316 mesh and security mesh are optional upgrades.

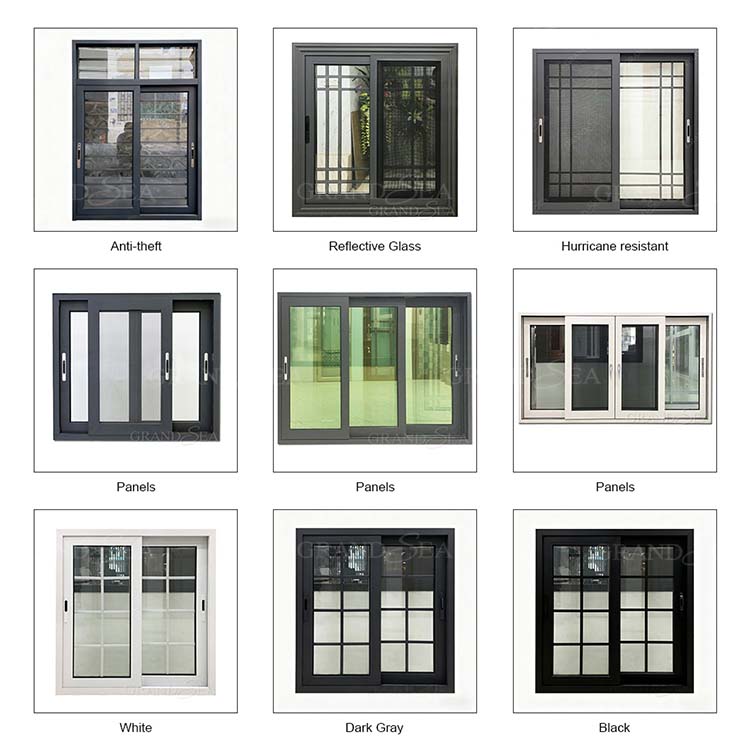

Q5: Do you support custom colours?
A: Yes. Multiple powder coating colour options are available based on RAL colour chart.
